INSTALLATION

Here you will find installation notes for Accu-Cut and EZ-Cut carpet, vinyl and turf cutting machines for Australia and New Zealand.

Accu-Cut Installation Notes

All Accu-Cut carpet, vinyl and turf cutting machines require 240V 15A single phase supply. The exceptions to this are models IVC16, X33 and T44. These three models require 240V 30A single phase supply. (See further down the page)

ELECTRICAL 15A

240V 15A single phase

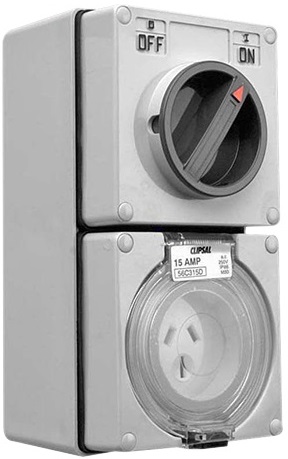

For 15A models a combination switch/socket is required either mounted to a wall or hanging on a chain from the roof near to where the machine will be installed. Suitable products are Clipsal 56C315 and NHP ISOC315PG

240V 15A single phase

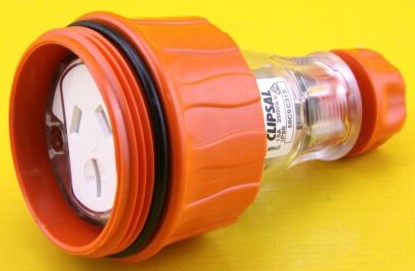

For 15A models if you are using an extension lead an inline socket is required. We advise against using extension leads wherever possible. Suitable products are Clipsal 56CSC315 and NHP ISOEX315P

COMPRESSED AIR

Accu-Cut IVC15, Q9 and T12 carpet, vinyl and turf cutting machines require compressed air. A minimum of 820 kPa (120 PSI), minimum of 115 l/m (4 CFM) and minimum of a 100 litre (25 gallon) tank.

Nitto Female Coupler

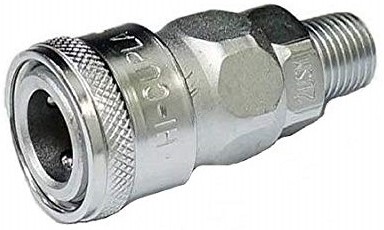

A female coupling will be required adjacent to where the machine is to be installed. Nitto is the recommended air fitting as used throughout Australia & New Zealand.

WEIGHTS

It is important to note that forklifts often specify their capacity at 600mm from the tine out to the centre of the load and height above the tine to the centre of the load. The centre of the load for most Accu-Cut carpet cutting machines is 1000 to 1200mm, so a larger capacity forklift is required to lift a machine safely. We recommend at least a 2000kg forklift for machines weighing 1000kg or more.

Accu-Cut MachineWeight


Accu-Cut Archer, J2 & J3    550kg
Accu-Cut Crossbow, J5    910kg
Accu-Cut Arrow, Q7    1050kg
Accu-Cut IVC15, Q9, T12    1610kg


Accu-Cut IVC16 - X33 - T44 Installation Notes

All Accu-Cut IVC16, X33 and T44 carpet, vinyl and turf cutting machines require 240V 30A single phase supply. There are some machines that are incorrectly labelled as 15A. We have confirmed with Accu-Cut that these machines were wrongly labelled and ALL IVC16, X33 and T44 are 30A.

ELECTRICAL 30A

240V 30A single phase

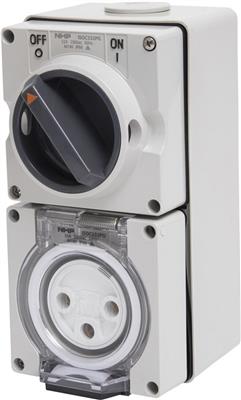

For 30A models a combination switch/socket is required either mounted to a wall or hanging on a chain from the roof near to where the machine will be installed. Suitable products are Clipsal 56C332 and NHP ISOC332PG

240V 30A single phase
For 30A models if you are using an extension lead an inline socket is required. We advise against using extension leads wherever possible. Suitable products are Clipsal 56CSC332 and NHP ISOEX332P

COMPRESSED AIR

Accu-Cut IVC16, X33 and T44 carpet, vinyl and turf cutting machines require compressed air. A minimum of 930 kPa (135 PSI), minimum of 280 l/m (10 CFM) and minimum of a 250 litre (60 gallon) tank.

Nitto Female Coupler
A female coupling will be required adjacent to where the machine is to be installed. Nitto is the recommended air fitting as used throughout Australia & New Zealand.

WEIGHTS

It is important to note that forklifts often specify their capacity at 600mm from the tine out to the centre of the load and height above the tine to the centre of the load. The centre of the load for most Accu-Cut carpet cutting machines is 1000 to 1200mm, so a larger capacity forklift is required to lift a machine safely. We recommend at least a 2000kg forklift for machines weighing 1000kg or more. Please also note, the standard Accu-Cut IVC16, X33 and T44 machines come in two pieces with each piece weighing 1100 and 1000kg.

Accu-Cut MachineWeight


Accu-Cut IVC16, X33, T44 Load side    1100kg
Accu-Cut IVC16, X33, T44 Roll Up side    1000kg


EZ-Cut Installation Notes

EZ-Cut Mk5, Mk6, Mk7, Mk10 and Mk100 carpet, vinyl and turf cutting machines require 240V 20A single phase supply. Mk2 and Mk4 are 240V 15A single phase and MkJR is 240V 10A single phase.

ELECTRICAL 20A

240V 20A single phase

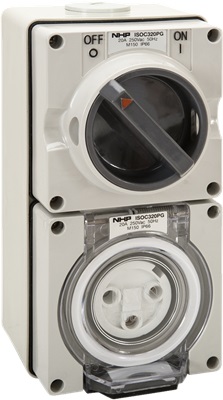

For 20A models a combination switch/socket is required either mounted to a wall or hanging on a chain from the roof near to where the machine will be installed. Suitable products are Clipsal 56C320 (round pin) and NHP ISOC320FPG (flat pin) and NHP ISOC320PG (round pin).

240V 30A single phase

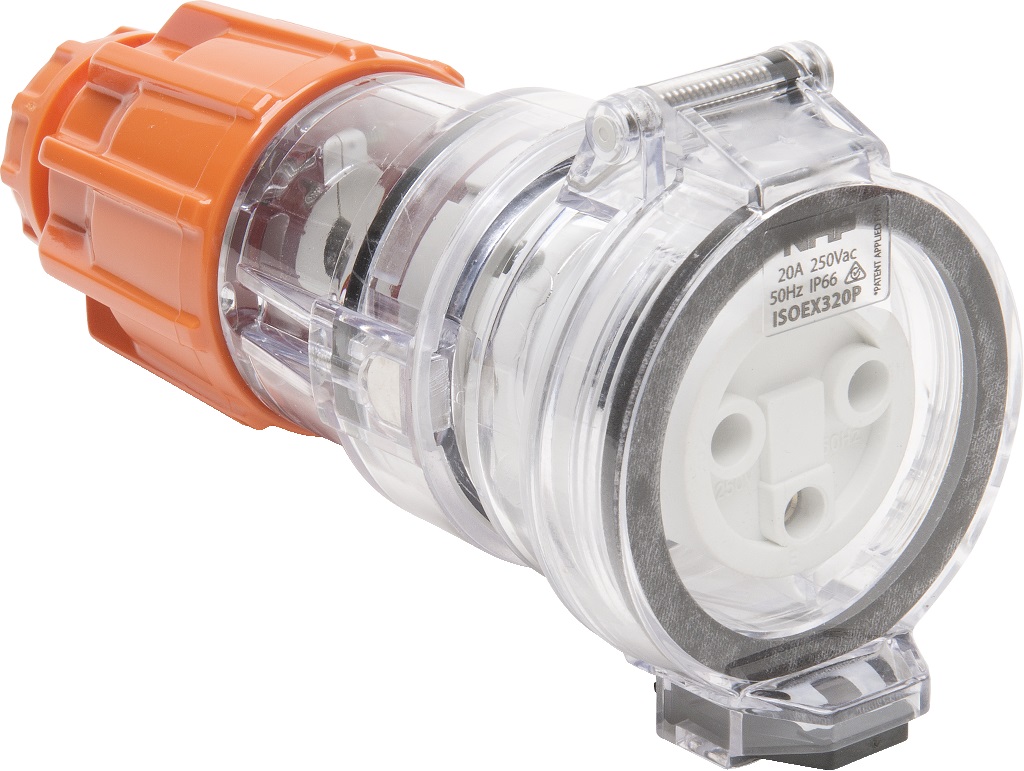

For 20A models if you are using an extension lead an inline socket is required. We advise against using extension leads wherever possible. Suitable products are Clipsal 56CSC320 (round pin) and NHP ISOEX320P (round pin).

ELECTRICAL 15A

240V 15A single phase
For 15A models a combination switch/socket is required either mounted to a wall or hanging on a chain from the roof near to where the machine will be installed. Suitable products are Clipsal 56C315 and NHP ISOC315PG

240V 15A single phase
For 15A models if you are using an extension lead an inline socket is required. We advise against using extension leads wherever possible. Suitable products are Clipsal 56CSC315 and NHP ISOEX315P

COMPRESSED AIR

EZ-Cut Mk5, Mk6, Mk7, and Mk10 carpet, vinyl and turf cutting machines require compressed air. A minimum of 820 kPa (120 PSI), minimum of 280 l/m (10 CFM) and minimum of a 80 litre (20 gallon) tank.

Nitto Female Coupler
A female coupling will be required adjacent to where the machine is to be installed. Nitto is the recommended air fitting as used throughout Australia & New Zealand.

WEIGHTS

It is important to note that forklifts often specify their capacity at 600mm from the tine out to the centre of the load and height above the tine to the centre of the load. The centre of the load for most EZ-Cut carpet cutting machines is 1000 to 1200mm, so a larger capacity forklift is required to lift a machine safely. We recommend at least a 2000kg forklift for machines weighing 1000kg or more.

EZ-Cut MachineWeight


EZ-Cut MkJR    700kg
EZ-Cut Mk1, Mk2    900kg
EZ-Cut Mk3, Mk4, Mk5, Mk6    1000kg
EZ-Cut Mk7    910kg
EZ-Cut Mk10    1000kg
EZ-Cut Mk100    1610kg

Please email Rod Lamont for more information - note: whilst all due care has been taken in preparing this page, Sutikely will not be held responsible for the use or misuse of this information. Please contact your local authority for the latest information.
